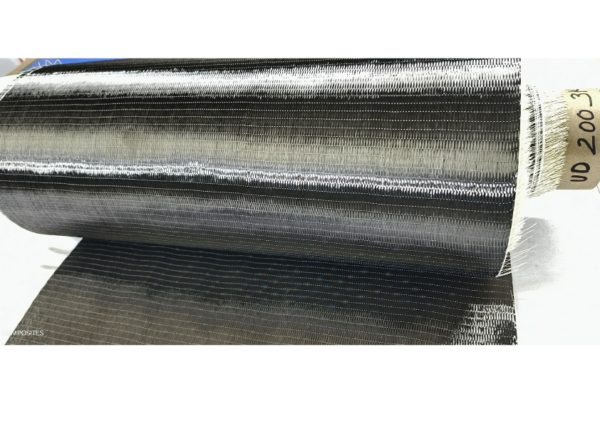

Carbon Fiber 3k UD 200 GSM
Unidirectional Carbon Fabrics are available in a wide range of areal weights and weave patterns ideal for Industrial, Automotive, Sports, Marine
and Aerospace applications. Woven BD Fabrics are suitable for use as structural reinforcements and for aesthetic enhancements.
Description
| Characteristic | Unit | Value |
|---|---|---|
| Density | g/cm3 | 1.8 min. |
| Filament Diameter | μm | 7 nominal |
| Tensile Strength | MPa | 4000 min. |
| Tensile Modulus | GPa | 240 min. |
| Elongation | % | 1.8 max. |
| Sizing | – | Epoxy Compatible |
Additional information
| Weight | 200 kg |
|---|---|
| Dimensions | 1000 cm |
